Facnor FXE 4500 Sail Furler Motorization Kit - 24V - 43801045240

The FXe 4500 Motorization Kit is designed for effortless electric furling of code sails on sailboats measuring 12.5 to 15.5 m (41' - 51'). This kit features a sealed, maintenance-free drive unit for reliable performance.

Features:

• Integrates a sealed drive unit crafted from anodized aluminum for durable and corrosion-resistant operation in marine environments
• Utilizes a unique captive quick-release pin for fast and secure sail attachment and detachment during sailing maneuvers
• Employs an "in/out" furling mechanism optimized for flying sails, enabling smooth and precise sail control
• Offers low energy consumption, operating efficiently between 20 to 25Ah while in use to conserve battery power
• Includes compact components that simplify installation and allow easy conversion from manual to electric furling systems
• Supports optional remote or radio control for enhanced convenience and sail handling flexibility
• Features quick tack attachment with a protective cover and snap shackle for streamlined sail setup
• Compatible with asymmetric spinnakers through optional top-down thimble conversion accessories

Specifications:

• Voltage: 24V
• Maximum Code Sail Area: 90 sq. m (964 sq. ft.)
• Maximum Staysail Area: 50 sq. m (538 sq. ft.)
• Boat Length Range: 12.5' to 15.5' (42' to 52')
• Energy Consumption: 20 - 25 Ah
• Material: Anodized aluminum

Included:

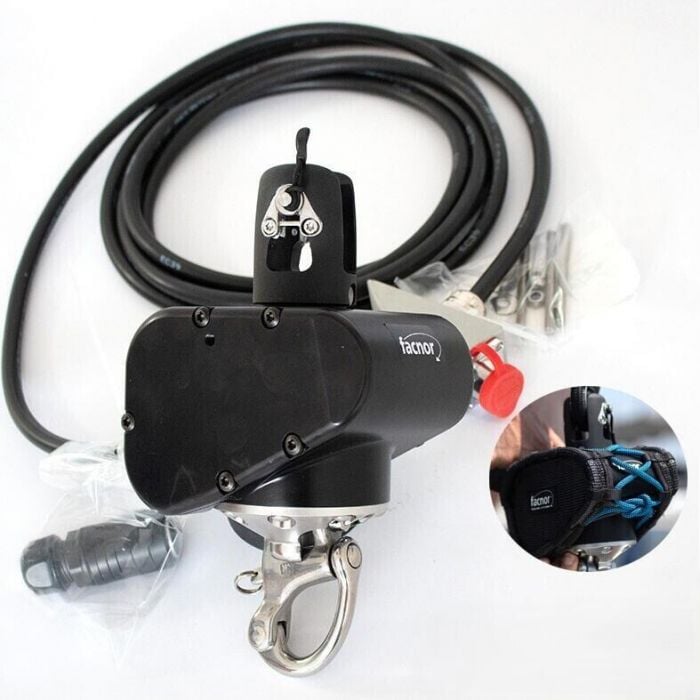

• (1) x Drive unit with electric connection set
• (1) x Snap shackle for bottom drum attachment
• (1) x Shackle for top swivel attachment
• (1) x Relay box
• (1) x Circuit breaker
• (1) x Storage bag

Installation Instructions (4.50 MB)
