Blue Sea Systems

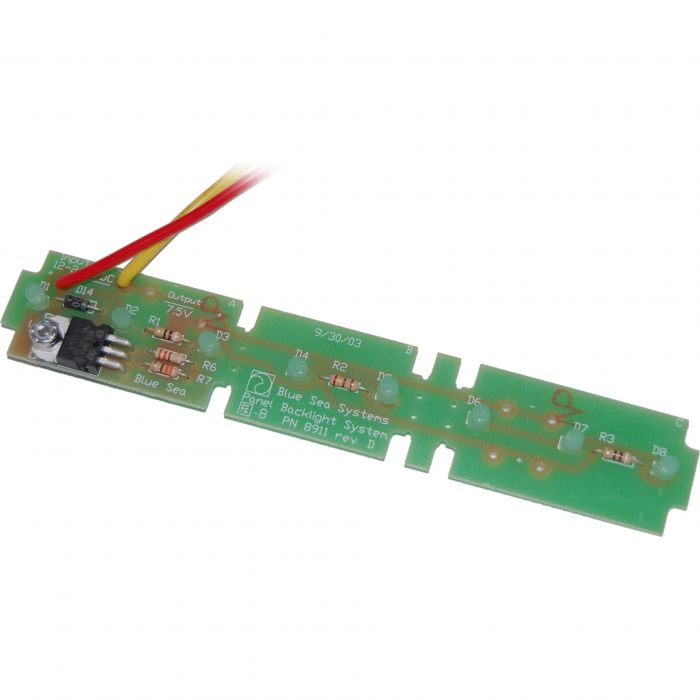

Blue Sea Systems Panel Label Backlight System - 8065
Item: #862722 | Part Number: 8065$21.99
Description
The Blue Sea Systems Panel Label Backlight System 8065 provides clean, easy-to-read label illumination for Traditional Metal circuit breaker panels. Designed for 12 or 24V DC systems, it installs quickly and draws minimal current while enhancing panel visibility in low-light conditions.
Blue Sea Systems Panel Label Backlight System - 8065 Item # 862722
Description
Blue Sea Systems Panel Label Backlight System adds label backlighting to Blue Sea Systems Traditional Metal circuit breaker panels.
Features:
- Easily installed in Blue Sea Systems circuit breaker panels
- Designed for 12 or 24V DC systems
- Connects to sources via (2) 20 AWG wire leads
- Snaps apart for (5) or (3) positions
- Reverse polarity protection built-in
Specifications:
- Maximum operating voltage: 24V DC
- Operating amperage current: <7 mA per label
Part Numbers for Blue Sea Systems Panel Label Backlight System - 8065
Reviews
Rated 2 out of
5
by
Solderer from
Solder
One of the Order did not work I had to re-solder one of them because one of the lights, only some worked.
Date published: 2025-06-02
