Item #862276

Blue Sea m-LVD Low Voltage Disconnect - 7635

$114.99
Want an email once available?
Buy with
Need Help? Speak to an Outfitting Specialist [email protected] 1-800-262-8727 MON-FRI 9AM-5:30PM SAT 9AM-5PM

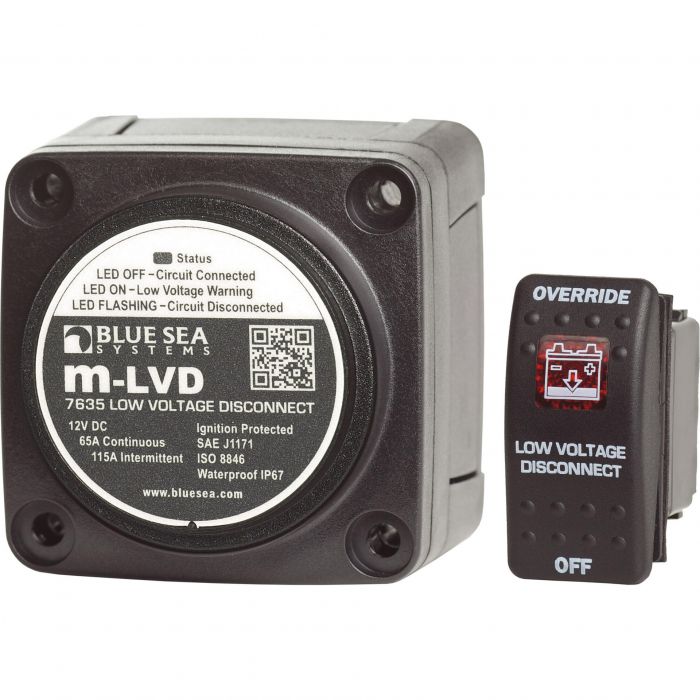

Image of : Blue Sea m-LVD Low Voltage Disconnect - 7635 Blue Sea m-LVD Low Voltage Disconnect - 7635 Item # 862276

Description

Don't get stranded with a dead battery. The Blue Sea 7635, m-LVD Low Voltage Disconnect senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life.

Features:

  • The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life
  • Ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery
  • Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect
  • Alarm output available for audible warning of low voltage state prior to disconnect (Optional Alarm Sold Separately)
  • Remote Control Switch Functions:
    • Disconnect Voltage Adjustment: Sets desired disconnect voltage
    • Override: Temporarily delays circuit disconnect for 10 minutes

Specifications:

  • Nominal Voltage 12V DC
  • Amperage Operating Current:
    • 95 mA (Connected)
    • 4 mA (Open)
  • Continuous Rating: 65A
  • Intermittent Rating: 115A (5 Min)
  • Maximum Cable Size: 1/0 AWG (50 mm2)
  • Terminal Stud Length: 7/16 in (11.11 mm)
  • Terminal Stud Size: 1/4" - 20 (M6)
  • Terminal Stud Torque: 60 in-lb. (6.78 Nm)
  • Mounting Options: Rear, Front or Surface
WARNING

This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm.

For more information go to www.p65warnings.ca.gov.

Part Numbers for Blue Sea m-LVD Low Voltage Disconnect - 7635
