Andersen Full Stainless Self-Tailing Winch

Andersen 1-speed, self-tailing winches are made with uncompromising quality, precision and reliability allowing you to manage your sails with the utmost confidence and efficiency. The full stainless self-tailing winch is beauty at work, enhancing the unique image of your boat and the sheer pleasure of beholding it. This winch is a prerequisite for the yachtsmen who take pride in making their yacht look its best.

Features:

• Smooth Power Rib© drum has vertical ribs on the surface providing maximum grip with minimum wear on lines
• Unlike other winches with abrasive drum surfaces, ANDERSEN winch drums have vertical ribs running up the surface
• Smooth polished stainless steel gives a maximum grip and minimum wear on ropes, reducing the replacements costs of sheets and halyards
• Sheets can be gently eased out without harsh snatching and the risks of overrides and jammed sheets are significantly reduced
• The grip provided by the ribs will remain the same year after year, unlike other winches with an abrasive or sandpaper-like surface, because those surfaces have a tendency to wear down both ropes and themselves
• The self-tailing system adjusts automatically to suit various line sizes
• Curved self-tailing arm gives a fair lead and is adjustable through 360°
• Aluminum-bronze upper base plate is approximately 2-1/2 times stronger than traditional bronze
• Stainless steel ball bearings
• Clever design and material selection result in strength and weight similar to or lighter than aluminum winches
• Drum design allows fewer turns on the winch making tacking and sail handling easier
• Captive pawls and springs make servicing and greasing easy
• Extremely strong machined AISI 316 cold-pressed stainless steel pawls
• AISI 329 stainless steel drive shaft
• Upper and lower bearings are designed to be as far apart as possible, resulting in increased support for the drum while increasing efficiency
• Large-diameter bearing to absorb drum loads and increase efficiency
• Convertible to electric using Andersen's modular system
• Servicing is only required every 2 years with normal use
• 3-Year Warranty

12-Speed Specifications:

• Model: 12 ST FS
• Speed: Single
• Drum diameter (D): 2 3/4" (70 mm)
• Base diameter (B): 4 1/2" (115 mm)
• Height (H): 5 1/8" (130 mm)
• Line entry (L): 1 3/4" (44 mm)
• Line size: 5/16"-9/16" (8-14 mm)
• Weight: 5.73 lbs (2.6kg)
• Gear ratio 1st speed: 1.3:1
• Gear ratio 2nd speed: NA
• Power ratio 1st speed: 9.5:1
• Power ratio 2nd speed: NA

18-Speed Specifications:

• Model: 18 ST FS
• Speed: Single
• Drum diameter (D): 2 3/4" (70mm)
• Base diameter (B): 4 3/4" (120mm)
• Height (H): 5 3/8" (136mm)
• Line entry (L): 1 15/16" (50mm)
• Line size: 5/16"-9/16" (8-14mm)
• Weight: 7.28 lbs (3.3kg)
• Gear ratio 1st speed: 2.6:1
• Gear ratio 2nd speed: NA
• Power ratio 1st speed: 18.8:1
• Power ratio 2nd speed: NA

28-Speed Specifications:

• Model: 28 ST FS
• Speeds: Two
• Drum diameter (D): 2 3/4" (70mm)
• Base diameter (B): 4 15/16" (125mm)
• Height (H): 5 15/16" (151mm)
• Line entry (L): 2 9/16" (65mm)
• Line size: 5/16"-9/16" (8-14mm)
• Weight: 9.04 lbs (4.1kg)
• Gear ratio 1st speed: 1.3:1
• Gear ratio 2nd speed: 3.7:1
• Power ratio 1st speed: 9.5:1
• Power ratio 2nd speed: 26.5:1

34-Speed Specifications:

• Model: 34 ST
• Speeds: Two
• Drum diameter (D): 2 3/4"
• Base diameter (B): 4 15/16"
• Height (H): 5 5/16"
• Line entry (L): 2 9/16"
• Line size: 1/8" - 11/16"
• Gear ratio 1st speed: 1.3:1
• Gear ratio 2nd speed: 4.7:1
• Power ratio 1st speed: 9.5:1
• Power ratio 2nd speed: 33.8:1

40-Speed Specifications:

• Model: 40 ST FS
• Speeds: Two
• Drum diameter (D): 2 15/16" (75 mm)
• Base diameter (B): 6" (152 mm)
• Height (H): 6 7/8" (174 mm)
• Line entry (L): 2 13/16" (71 mm)
• Line size: 5/16"-9/16" (8-14 mm)
• Weight: 11.02 lbs (5kg)
• Gear ratio 1st speed: 1.3:1
• Gear ratio 2nd speed: 6.0:1
• Power ratio 1st speed: 8.5:1
• Power ratio 2nd speed: 39.5:1

46-Speed Specifications:

• Model: 46 ST FS
• Speeds: Two
• Drum diameter (D): 3 1/2" (89 mm)
• Base diameter (B): 7 1/16" (180 mm)
• Height (H): 8 1/4" (209 mm)
• Line entry (L): 3 9/16" (90 mm)
• Line size: 5/16"-9/16" (8-14 mm)
• Weight: 17.20 lbs (7.8kg)
• Gear ratio 1st speed: 2.8:1
• Gear ratio 2nd speed: 8.4:1
• Power ratio 1st speed: 15.5:1
• Power ratio 2nd speed: 46.6:1

50-Speed Specifications:

• Model: 50 ST
• Speeds: Two
• Drum diameter (D): 3 1/2"
• Base diameter (B): 7 1/16"
• Height (H): 8 1/4"
• Line entry (L): 3 9/16"
• Line size: 1/8" - 11/16"
• Gear ratio 1st speed: 2.8:1
• Gear ratio 2nd speed: 8.8:1
• Power ratio 1st speed: 15.7:1
• Power ratio 2nd speed: 49.3:1

52-Speed Specifications:

• Model: 52 ST FS
• Speeds: Two
• Drum diameter (D): 3 15/16" (106 mm)
• Base diameter (B): 7 7/8" (200 mm)
• Height (H): 9" (228 mm)
• Line entry (L): 4 3/16" (106 mm)
• Line size: 5/16"-5/8" (8-16 mm)
• Weight: 24.47 lbs (11.1kg)
• Gear ratio 1st speed: 3.2:1
• Gear ratio 2nd speed: 10.5:1
• Power ratio 1st speed: 16.2:1
• Power ratio 2nd speed: 52.0:1

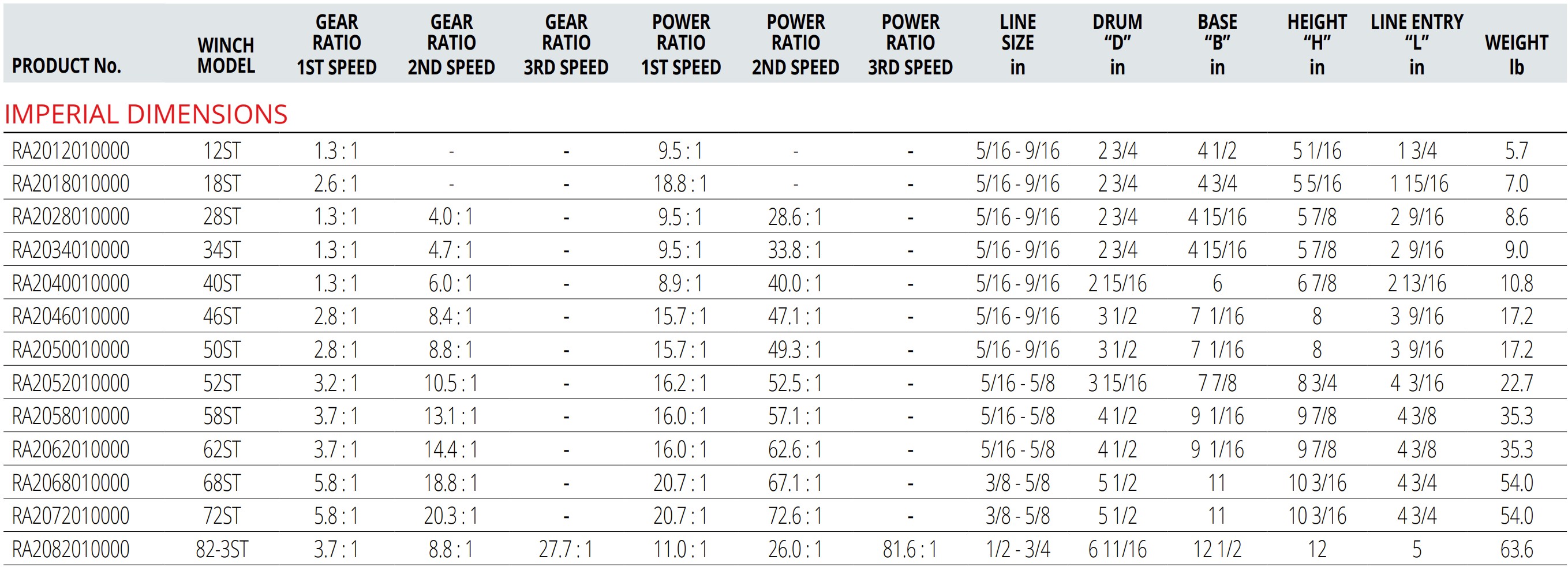

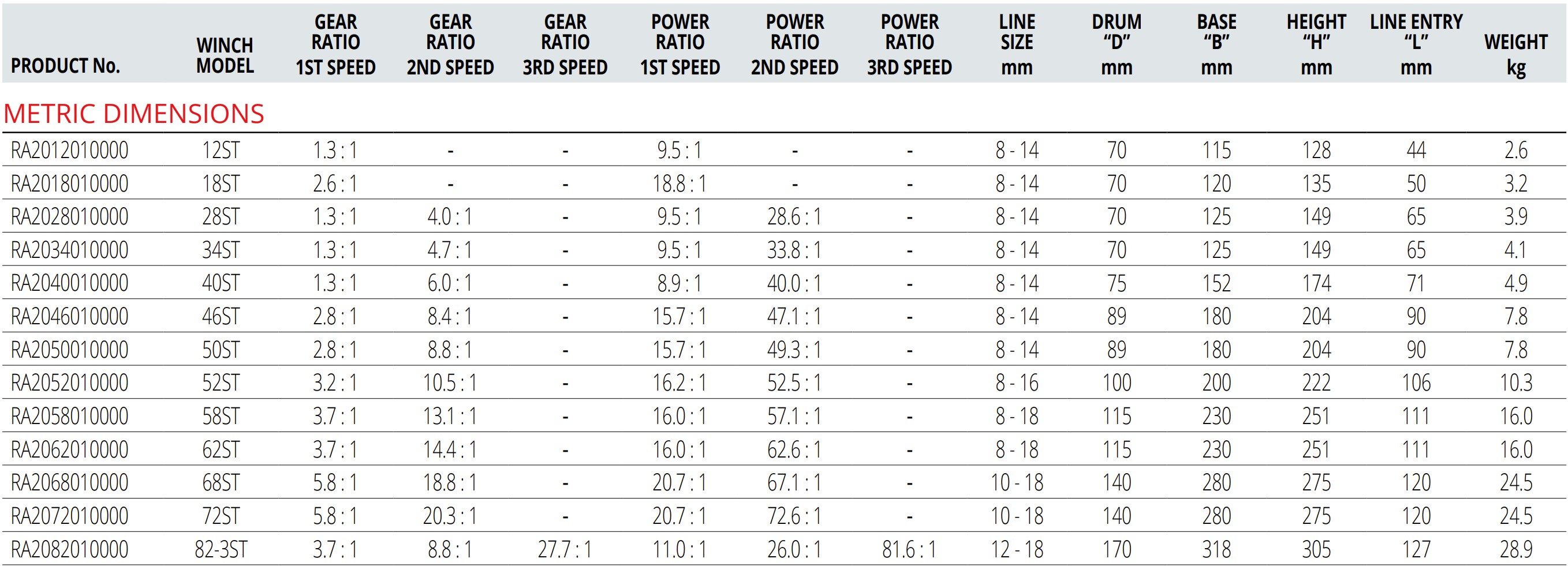

Mounting Measurements and Selection Guide
