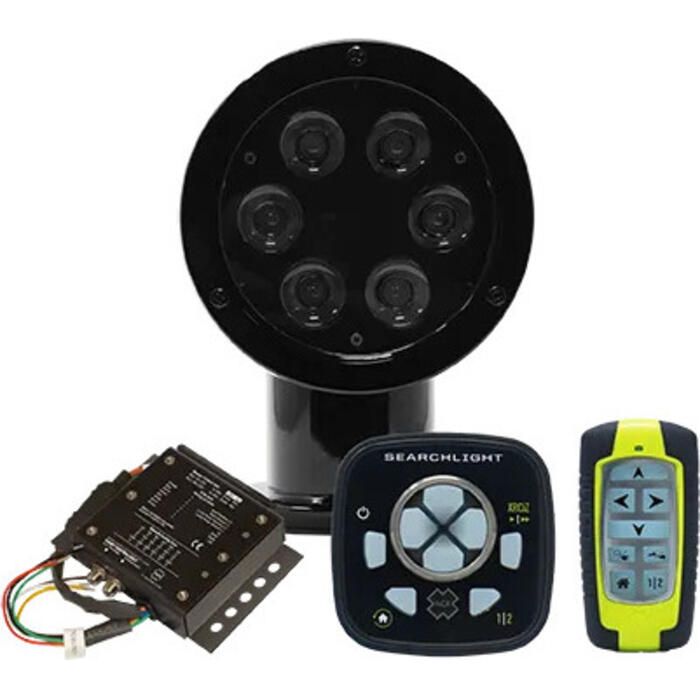

ACR RCL-50 LED Searchlight with URC-104 Master Controller & URP-103 Point Pad

The RCL-50 LED is a durable marine searchlight featuring a powerful 6-LED array that delivers over 100,000 candela. It offers 360 deg. continuous rotation with precise elevation control, housed in a rugged aluminum case designed for long-lasting performance.

Features:

• High-intensity LED array provides bright illumination with a focused 10-degree beam angle for clear visibility
• Durable aluminum housing with UV protection ensures resistance to harsh outdoor environments and corrosion
• Remote-controlled operation with wired Point Pad allows smooth 360 deg. rotation at two adjustable speeds
• Elevation adjustment offers 20 deg. up and down tilt for versatile beam positioning on various targets
• Energy-efficient LEDs deliver up to 40,000 hours of operation while reducing power consumption by half on 12V systems
• Automatic monthly rotation feature prevents corrosion and maintains smooth mechanical function over time
• Includes a 15' wiring harness for easy installation and reliable power connection
• Two-speed motor enables fast and precise beam movement for quick target acquisition

Specifications:

• Peak Beam Candle Power: 100,000 candela
• Beam Distance: 2,066' (630 m)
• Elevation Angle: 20 deg. up / 20 deg. down
• Rotation Speed: 31 deg./sec @ 12V
• Elevation Speed: 10 deg./sec @ 12V
• Power Requirements: 12V/24V DC
• Weight: 7.72 lbs (3.5 kg)
• Dimensions (W x H x D): 8.4" x 6" x 8" (21.3 x 15.2 x 20 cm)
• Housing Material: Die-cast aluminum
• Footprint Diameter: 4.75" (12.1 cm)
• LED Life: 40,000 Hours

Compatibility:

• Works with URP-103 point pad and URC-104 master controller systems
• Supports integration with URH-103 handheld wireless remote

Included:

• Models without handheld wireless remote (1982 and 1983 models)
  • (1) x RCL-50 LED searchlight
  • (1) x 15' wiring harness
  • (1) x URP-103 wired point pad remote
  • (1) x URC-104 master controller
• Models with handheld wireless remote (1980 and 1981 models)
  • (1) x RCL-50 LED searchlight
  • (1) x 15' wiring harness
  • (1) x URP-103 wired point pad remote
  • (1) x URC-104 master controller
  • (1) x URH-103 handheld wireless remote
