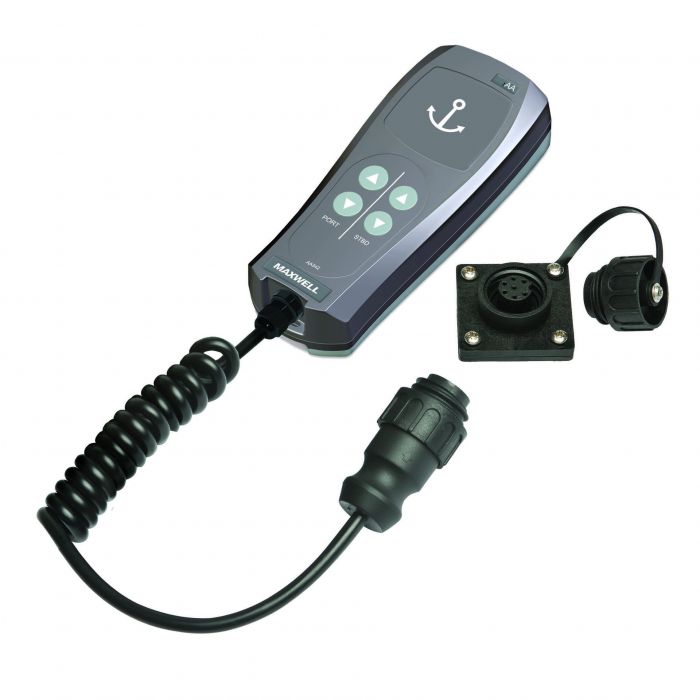

Maxwell AA342 Remote f/Dual Windlasses - 4 Outputs - P102996

This is a handheld wired roving dual windlass controller. The remote has 4 outputs unit that can be installed to meet your specific requirements.

Features:

• 2 Buttons up and 2 buttons down
• Designed for dual windlass control

Specifications:

• Maximum operating voltage: 25V AC (RMS) / 30V DC
• Contact current rating: SA resistive load / 3A inductive load
• Operating temperature range: 23° to 140° F (-15° C to 70° C)
• IP rating: IP67
• Dimensions handset (H x W x D): 5.92" X 2.53" X 1.87'' (150.36 x 64.37 x 47.42 mm)
• Standard cable extension: 11.5' (3.5 m)
• Flying lead from deck socket: 6.5' (2 m)
