Garmin Panoptix PS22-TR LiveVu Forward & Down Transducer - 010-01945-00

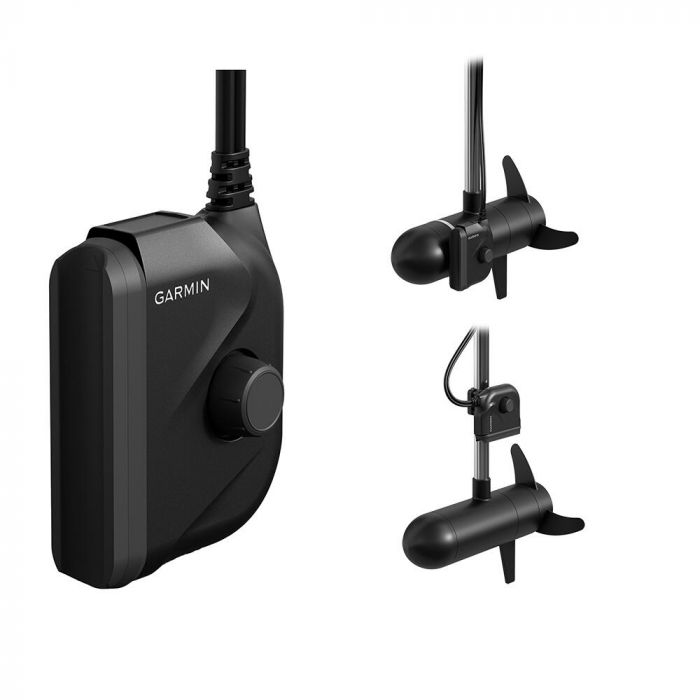

Garmin Panoptix PS22-TR Trolling Motor Transducer with 2 Panoptix LiveVu Modes. Garmin is the first to bring 2 modes of Panoptix sonar imaging to 1 transducer for your boat. Panoptix all-seeing sonar is unlike anything you've ever seen on the water. It gives you the ability to see all around your boat and below it - in real time - up to 100' away.

Features:

• LiveVu Forward sonar shows the structure and fish ahead and around your boat
• LiveVu Down sonar shows below and around your boat for vertical fishing and jigging
• Narrow beam angle (20 deg.) for crisp, improved resolution and clear images
• Mounts to the shaft or motor barrel of a trolling motor
• One-screw mount design makes it easy to change modes

Specifications:

• Transducer frequency: 417 kHz
• Transducer power: 48W
• Transducer beamwidth: 120°x20°
• Transducer maximum depth: 300' Down; 300' Forward
• Transducer cable length: Power cable 13'; Ethernet cable 13'
• Transducer depth/speed/temperature: Depth and temperature
• Transducer number of pins: Ethernet
• Transducer supported deadrise/transom angles: Trolling motor shaft or Barrel mount

Included:

• Panoptix PS22-TR transducer with integrated 4 m network and power cable
• Trolling motor shaft mount
• Trolling motor barrel mount
• Documentation

Installation Instructions (1.05 MB)
