Item #956042

Garmin LiveScope Plus LI Ice Fishing Bundle

00 Review
Want an email once available?
Buy with

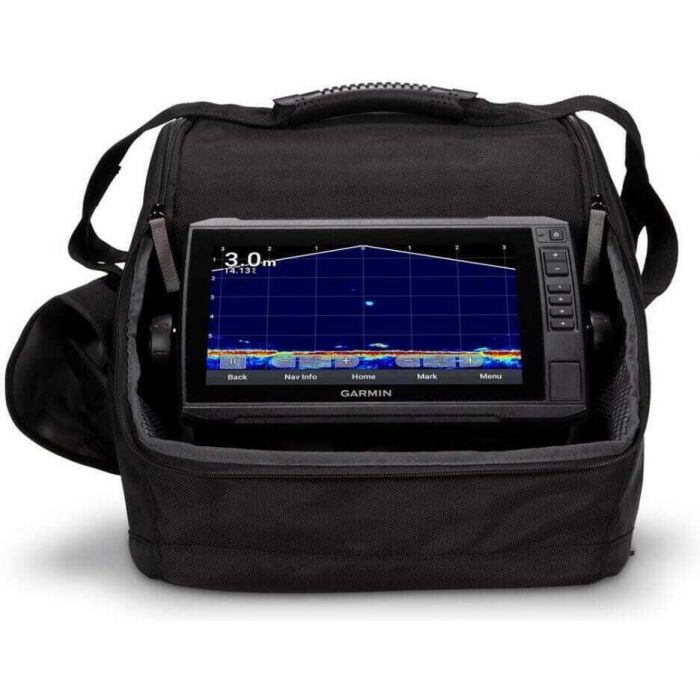

Image of : Garmin LiveScope Plus LI Ice Fishing Bundle

Garmin LiveScope Plus LI Ice Fishing Bundle

Item # 956042


Get improved resolution, reduced noise, clearer images and better target separation with the LiveScope Plus LI Ice Fishing Kit. It includes an ECHOMAP UHD 93sv combo, LiveScope Plus sonar system and lightweight lithium battery. See images clearly with improved sonar clarity, transducer sensitivity and target separation. Scan surroundings with sharper images, reduced noise and fewer sonar artifacts. Scout for schools of fish with LiveScope Forward mode so you know where to drill your next hole. Keep an eye on your jig and see how fish react to it with LiveScope Down mode. Only the fish will weigh you down. This bundle comes with a lightweight lithium battery. Everything goes where you go. All accessories fit in the portable carrying case.


  • Revolutionary real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200' in any direction
  • Adapt your fishing technique with a LiveScope Plus system, which offers two live-scanning sonar modes Down and Forward with improved resolution, reduced noise, clearer images and better target separation
  • LiveScope Forward sonar shows up to 200' all around you and below the ice, so you can locate schools of fish and know where to drill the next hole
  • LiveScope Down sonar shows live sonar images of what is below the ice, so you can watch fish respond to your jig
  • The unit comes preloaded with LakeVu g3 maps with integrated Garmin and Navionics data, covering more than 18,000 lakes in the U.S. It also supports Garmin Navionics+ cartography (sold separately)
  • The built-in flasher (requires an accessory purchase) provides accurate jig and fish detection as they swim into the sonar beam
  • You can create custom pages that combine LiveScope Plus sonar, flasher and map on your display
  • Fish even longer with a lightweight lithium battery that won't weigh you down on the ice
  • Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season


  • Dimensions: 13.8" × 12.2" × 13.0" (35 × 31 × 33 cm)
  • Display size: 7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
  • Display resolution: 800 x 480 pixels
  • Display type: WVGA display
  • Weight: 28.0 lbs (12.7 kg)
  • Waterproof rating: IPX7
  • Power consumption: 6.2W
  • Antenna: Internal or external over NMEA 2000
  • Transmit power: 500W
  • Receiver: 5 Hz
  • Garmin Marine Network Ports: 1 Panoptix port
  • Tide tables: yes
  • Garmin sonar compatible: yes
  • Frequencies supported: 530 - 1100 kHz
  • Maximum depth: Down and Forward: 200' (61.0 m)
  • Bottom Lock (shows return from the bottom up)
  • Water temperature log and graph
  • Sonar recording
  • Sonar history rewind
  • NMEA 2000 compatible
  • Transducer pin numbers: 21
  • NMEA 0183 inport ports: 1
  • NMEA 0183 output ports: 1
  • Wireless connectivity
  • Battery type: 16.5 Ahr Lithium-ion
  • Battery weight: 3.4 lbs
  • Battery runtime (0°C 100% backlight): 11.4 hrs
  • Bag size: Extra large (XL)
  • Included transducer: Panoptix LiveScope Plus System
  • Includes LVS34-IF with silicone cable


  • ECHOMAP UHD 93sv chartplotter
  • LiveScope Plus System
  • Zero degree mount
  • LiveScope ice fishing mount
  • Tilt/swivel mount
  • Power cable
  • Documentation
  • Portable fishing kit:
    • Bag with handle
    • Lithium-ion battery
    • Battery charger

Owner's Manual (5.30 MB)

Installation Instructions (1.70 MB)
