Item #956041

Garmin Livescope Plus Ice Fishing Li Bundle

00 Review
Want an email once available?
Buy with

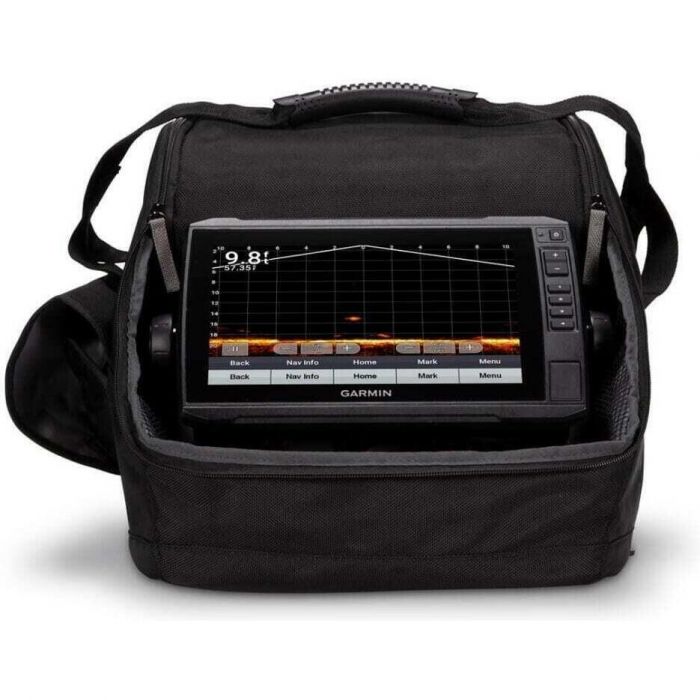

Image of : Garmin Livescope Plus Ice Fishing Li Bundle

Garmin Livescope Plus Ice Fishing Li Bundle

Item # 956041


Get improved resolution, reduced noise, clearer images, and better target separation with the LiveScope Plus ice fishing bundle LI. It includes an ECHOMAP UHD 93sv combo, a LiveScope Plus sonar system, and a lightweight lithium battery.


  • Revolutionary real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200' in any direction
  • Adapt your fishing technique with a LiveScope Plus system, which offers two live-scanning sonar modes Down and Forward with improved resolution, reduced noise, clearer images and better target separation
  • LiveScope Forward sonar shows up to 200' all around you and below the ice, so you can locate schools of fish and know where to drill the next hole
  • LiveScope Down sonar shows live sonar images of what is below the ice, so you can watch fish respond to your jig
  • The unit comes preloaded with LakeVu g3 maps with integrated Garmin and Navionics data, covering more than 18,000 lakes in the U.S. It also supports Garmin Navionics+ cartography (sold separately)
  • The built-in flasher (requires an accessory purchase) provides accurate jig and fish detection as they swim into the sonar beam
  • You can create custom pages that combine LiveScope Plus sonar, flasher, and map on your display
  • Fish even longer with a lightweight lithium battery that won't weigh you down on the ice
  • Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season


  • Physical dimensions: 13.8" × 12.2" × 13.0" (35 × 31 × 33 cm)
  • Display size: 7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)
  • Display resolution: 800 x 480 pixels
  • Display type: WVGA display
  • Weight: 28.0 lbs (12.7 kg)
  • Water rating: IPX7
  • Power consumption: 6.2W
  • Antenna: Internal or external over NMEA 2000
  • Transmit power: 500W
  • Receiver: 5 Hz
  • Garmin Marine Network Ports: 1 Panoptix port
  • Tide tables
  • Garmin sonar compatible
  • Frequencies supported: 530 - 1,100 kHz
  • Maximum depth: Down and Forward: 200' (61.0 m)
  • Bottom Lock (shows return from the bottom up)
  • Water temperature log and graph
  • Sonar recording
  • Sonar history rewind
  • NMEA 2000 compatible
  • Transducer pin numbers: 21
  • NMEA 0183 inport ports: 1
  • NMEA 0183 output ports: 1
  • Wireless connectivity
  • Battery: 16.5 Ahr Lithium-ion, 3.4 lbs
  • Runtime (0°C 100% backlight): 11.4 hours
  • Bag size: Extra large
  • Included transducer: Panoptix LiveScope Plus System


  • ECHOMAP UHD 93sv chartplotter
  • LiveScope Plus System
  • Zero degrees mount
  • LiveScope ice fishing mount
  • Tilt/swivel mount
  • Power cable
  • Documentation
  • Portable fishing kit
  • Bag with handle
  • Lithium-ion battery
  • Battery charger

Owner's Manual (5.30 MB)

Installation Instructions (1.70 MB)
