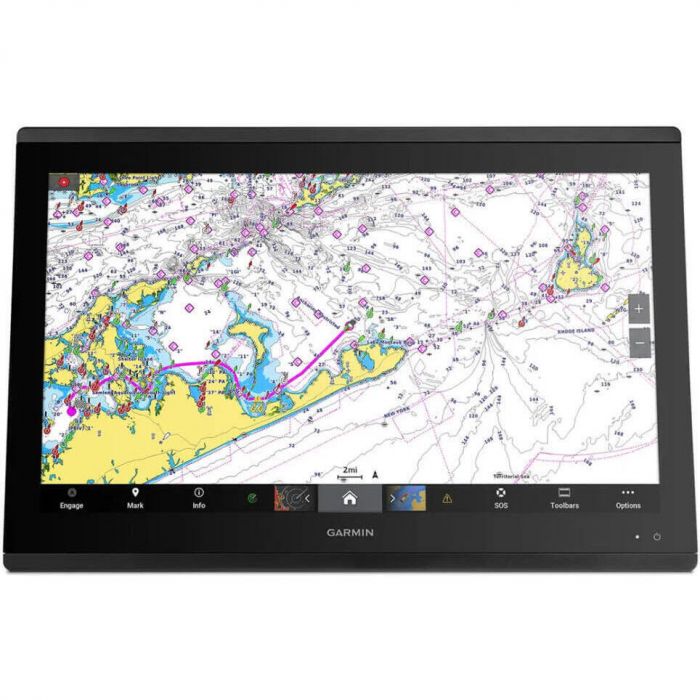

Garmin GPSMAP 8622 Chartplotter without Sonar - 010-01511-50

Serious anglers, cruisers, sailors and sail racers demand serious equipment. This easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.

Features:

• Wide viewing angles, superior clarity and sunlight readability, even with polarized sunglasses
• You can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm
• Optional, easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system
• Get built-in support for 1-kW Dual-Channel CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000' below and around your boat at 260 kHz (requires transducer, sold separately)
• Pair your chartplotter with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time
• View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more
• Experience unparalleled coverage and detail with preloaded Garmin Navionics+ charts
• Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim
• Connect to autopilots, digital switching, weather, your FUSION-Link audio system, media, VHF, AIS and more from one screen
• Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Helm, Garmin Quickdraw Community data and more
• Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls

Specifications:

• Dimensions: 20.8" x 13.8" x 2.8" (52.8 x 35.1 x 7.1 cm)
• Weight: 15.63 lbs (7.09 kg)
• Waterproof: IPX7
• Display type: FHD, IPS
• Display size: 18.8" x 10.6"; 21.5" diagonal, 47.8 x 27.0 cm; 54.6 cm diagonal
• Display resolution: 1920 x 1080 pixels
• Mounting options: Flat or flush
• Input: Touchscreen
• Accepts data cards: 2 SD Cards (with Garmin SD card reader accesory)
• Waypoints: 5,000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation routes: 100
• Power input: 10 to 35V DC
• Typical current draw @ 12V DC: 3.9A
• Maximum current draw @ 12V DC: 4.9A
• Maximum power usage @ 10V DC: 59W
• Traditional sonar (dual frequency/beam): Yes (with external black box, sold separately)
• ClearVu: Yes (with GCV™ black box, sold separately)
• SideVu: Yes (with GCV™ black box, sold separately)
• NMEA 2000® ports: 1
• Connections NMEA 0183 input ports: 4
• NMEA 0183 output (TX) ports: 2
• Video input ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
• Video output ports: 1 HDMI
• J1939 ports: 1
• Garmin marine network ports: 4

Included:

• GPSMAP 8422
• Trim piece snap covers
• GPS 24xd NMEA 2000 (with pole mount, flush mount and under deck mount adapters)
• Protective cover
• Flush mount hardware
• Power cable
• NMEA 2000 2 m backbone/drop cable
• NMEA 2000 6 m backbone cable
• NMEA 2000 power cable
• NMEA 2000 T-connector & terminator kit
• Documentation

Owner's Manual
