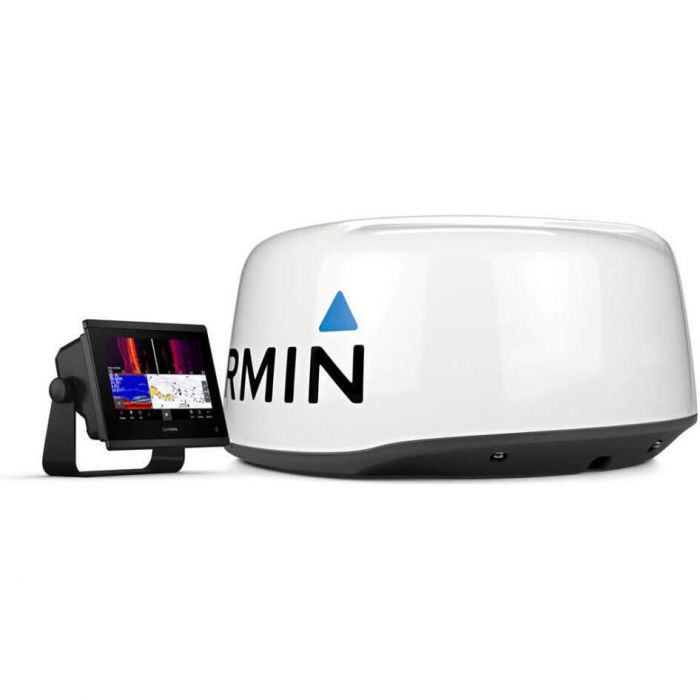

Garmin GPSMAP 723xsv Chartplotter

With its sleek design, powerful processing and upgraded IPS display, this advanced chartplotter integrates seamlessly into your Garmin marine system.

Chartplotter Features:

• Get built-in Ultra High-Definition SideVu and ClearVu scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure
• With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint
• New higher-resolution IPS displays offer improved sunlight readability and visibility from any angle
• Experience unparalleled coverage and detail with built-in Garmin Navionics+ or BlueChart/LakeVu G3
• View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more
• Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim
• If you have multiple compatible Garmin devices on your boat, you can share information such as maps, user data, radar and IP camera video
• Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen
• Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature and more
• Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines

Optional GMR 18 HD+ Features:

• Streamlined 18-inch 4kW dome radar
• Deliver 4kW of transmit power and clear echo definition at all ranges
• Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
• Dynamic Sea Filter automatically adjusts gain to changing sea conditions
• Beam angles: 5.0° horizontal, 25° vertical
• Max range: 36 nm
• Minimum range: 20 m
• Rotation speed: 24 revolutions/minute
• No complex user settings; easy to install and start using

Chartplotter Specifications:

• Input: Touchscreen
• Display Size: 6.1" x 3.5"; 7.0" diagonal (15.4 x 9.1 cm; 17.8 cm diagonal)
• Display Resolution: 1024 x 600 pixels
• Display Type: WSVGA
• Weight: 2.8 lbs (1.3 kg)
• Waterproof: IPX7
• Smart Mode Compatible
• AIS
• DSC
• Supports Fusion-Link Compatible Radios
• Gsd/Gcv Black Box Sonar Support
• Activecaptain Compatible
• Garmin Remote Input Device compatible
• Wireless Remote Compatible
• Sailing Features
• Spoken Audio Alerts
• Onehelm Support
• Maps and Memory:
  • Accepts Data Cards: 2 microSD cards (back of unit)
  • Waypoints: 5000
  • Track Points: 50000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100
• Sensors:
  • Has Built-In Receiver
  • Receiver: 10 Hz
  • NMEA 2000/NMEA 0183 Compatible
  • GPS
  • GLONASS
  • Galileo
  • Supports WAAS
• Sonar:
  • Displays Sonar
  • Power Output: 1 kW
  • Traditional Sonar (Dual Frequency/Beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • Clearvü: built-in 260/455/800/1000/1200 kHz
  • Sidevü: built-in 260/455/800/1000/1200 kHz
  • Panoptix Sonar
  • Livescope
• Connections:
  • NMEA 2000 Ports: 1
  • Connections NMEA0183 Input Ports: 1
  • NMEA 0183 Input (Tx) Ports: 1
  • Video Input Ports: 1 (BNC composite)
  • J1939 Ports: 1
  • Garmin Marine Network Ports: 1
  • 12-Pin Transducer Ports: 1
  • Usb Ports
  • Bnc External GPS Antenna Port
  • Bluetooth Pairing
  • Ant+ (Connectivity)
  • Garmin Wi-Fi Network (Local Connection)
