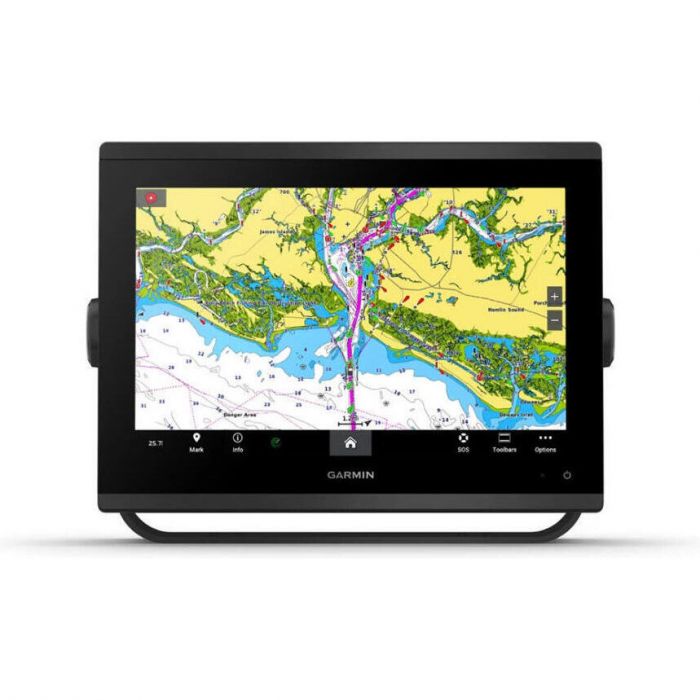

Garmin GPSMAP 1243 Chartplotter without Sonar

With its sleek design, powerful processing and upgraded IPS display, this advanced chartplotter integrates seamlessly into your Garmin marine system.

Features:

• Get built-in Ultra High-Definition SideVu and ClearVu scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP X3 series also supports 1 kW CHIRP traditional sonar capabilities
• With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it's easy to retrofit this plotter in a wider range of dash configurations
• New higher-resolution IPS displays for plotters offer improved sunlight readability and visibility from any angle
• Experience unparalleled coverage and detail with built-in Garmin Navionics+ or BlueChart/LakeVu G3 integrated mapping
• View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more
• Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim
• If you have multiple compatible Garmin devices on your boat, you can share information such as maps, user data, radar and IP camera video
• Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen
• Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Helm, Garmin Quickdraw Community data and more
• Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines
• This feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen

Specifications:

• Dimensions: 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)
• Input: Touchscreen
• Display Size: 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
• Display Resolution: 1280 x 800 pixels
• Display Type: WXGA
• Weight: 6.6 lbs (3.0 kg)
• Waterproof: IPX7
• Smart Mode Compatible
• AIS
• DSC
• Supports Fusion-Link Compatible Radios
• GSD Black Box Sonar Support
• GCV Black Box Sonar Support
• Activecaptain Compatible: yes
• Grid (Garmin Remote Input Device) Compatible
• Wireless Remote Compatible
• Sailing Features
• Spoken Audio Alerts
• Onehelm Support
• Maps and Memory:
  • Accepts Data Cards: 2 microSD cards (back of unit)
  • Waypoints: 5000
  • Track Points: 50000
  • Tracks: 50 saved tracks
  • Navigation Routes: 100
• Sensors:
  • Has Built-In Receiver
  • Receiver
  • NMEA 2000 Compatible
  • NMEA 0183 Compatible
  • GPS
  • GLONASS
  • Galileo
  • Supports WAAS
• Sonar:
  • Displays Sonar
  • Traditional Sonar (Dual Frequency/Beam): yes (with GCV black box, sold separately)
  • Clearvu: yes (with GCV black box, sold separately)
  • Sidevu: yes (with GCV black box, sold separately)
  • Panoptix Sonar
  • Livescope
• Connections:
  • NMEA 2000 Ports: 1
  • Connections NMEA0183 Input Ports: 1
  • NMEA 0183 Input (Tx) Ports: 1
  • Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
  • Video Output Ports: 1 HDMI
  • J1939 Ports: 1
  • Garmin Marine Network Ports: 2
  • Usb Ports
  • Bnc External GPS Antenna Port
  • Bluetooth Pairing
  • Ant+ (Connectivity)
  • Garmin Wi-Fi Network (Local Connection)
• Electrical:
  • Power Input: 10 to 32V DC
  • Typical Current Draw At 12V DC: 1.67A
  • Maximum Current Draw At 12V DC: 2.15A
  • Maximum Power Usage At 10V DC: 26.5W
