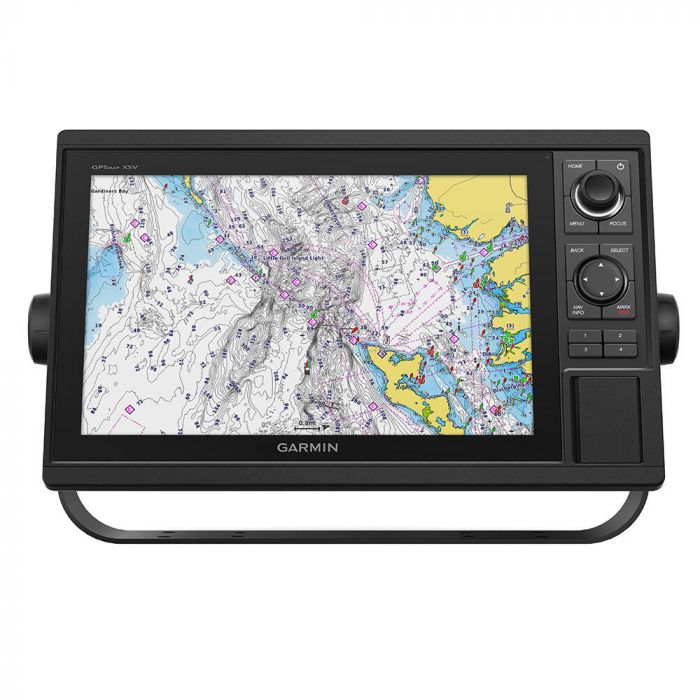

Garmin GPSMAP 1242xsv Combo GPS/Fishfinder

Garmin's GPSMAP 1242xsv Combo GPS/Fishfinder is a premium chartplotter designed for the adventurous spirit. This 12" chartplotter features a large, bright screens coupled with quick and easy-to-use keypad interfaces with user-programmable keys and multifunction control knobs to help you navigate with ease. See what's around your boat with built-in sonar capabilities (transducer included, dependent on option selection).

Features:

• Built-in single-channel CHIRP sonar plus CHIRP ClearVu™ and SideVu™ scanning sonars with Panoptix™ and LiveScope™ sonar support on select models (GT52-TM Transducer option)
• ANT wireless connectivity compatible with Garmin devices such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls
• Built in Wi-Fi® technology gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere on your compatible smartphone
• Use the polar table to view important data fields to help you trim your sails for maximum speed and efficiency. You can also see laylines, set and drift, true and apparent wind data (sensor sold separately), and more
• Garmin Navionics Vision+™ cartography subscription provides downloadable high-resolution relief shading, satellite photos, Auto Guidance+™ technology
• Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid
• Fully network capable for the Garmin Marine Network and NMEA 2000® networking plus NMEA 0183 technology support
• Easily transfer waypoints, tracks or frequently used routes from other devices via industry standard GPX software formatting
• Complete network sharing of sonar, maps, user data, dome or open-array radar, and Panoptix and LiveScope sonars among multiple units
• Read RPMs, fuel flow, temperature, trim and other important information at a glance
• Pair your inReach satellite communicator to your chartplotter, and type custom messages using your MFD's on-screen keyboard
• By networking select Garmin chartplotters with a Force® trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and auto guidance end-of-route anchoring

Specifications:

• Dimension: 14.1" x 8.9" x 2.7" (358 x 226 x 69 mm)
• Weight: 5.2 lbs (2.34 kg)
• Waterproof: IPX7
• Display type: WXGA, NP
• Display size: 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm)
• Display resolution: 1280 x 800 pixels
• Mounting options: Bail or flush
• Input: Keyed
• Accepts data cards: 2 SD™ cards
• Waypoints: 5,000
• Track points: 50,000
• Tracks: 50 saved tracks
• Navigation routes: 100
• Receiver: 10 Hz
• Power input: 10 to 32V DC
• Typical current draw @ 12V DC: 2.2A
• Maximum current draw @ 12V DC: 2.9A
• Maximum power usage @ 10V DC: 34.8W
• Power output: 1 kW
• Tradtional sonar (dual frequency/beam): Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
• ClearVu: Built-in 260/455/800/1000/1200 kHz
• SideVu: Built-in 260/455/800/1000/1200 kHz
• NMEA 2000® ports: 1
• Connections NMEA 0183 input ports: 1
• NMEA 0183 input (TX) ports: 1
• Video input ports: 1 BNC
• Garmin marine network ports: 2
• 12-pin transducer ports: 1

Included:

• GPSMAP 1242xsv chartplotter (GT52HW-TM transducer optional)
• Power/data cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 m)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation
