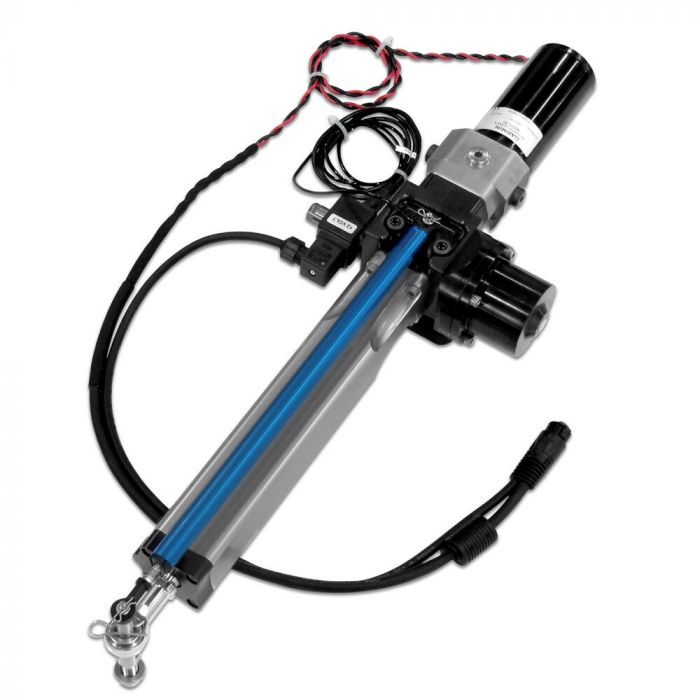

Garmin Class B Autopilot Compact Drive Unit - 010-12029-00

The Class B Compact Drive Unit works with the GHP™ 12 marine autopilot system to control your sailboat's steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.

Specifications:

• Drive unit type: Integrated Hydraulic linear
• Stroke length: 10" (254 mm)
• Maximum thrust: 1610 lbs (730 Kg)
• Dimensions, centered (W x H x D): 31.9 x 4.6" x 8.9" (810 x 120 x 225 mm)
• Supply voltage: 10V to 30V (regulated to 12V by the ECU)
• Average clutch current at 12V: 1A
• Average motor current at 12V: 2-4A
• Operating temperature: -15° C to 50° C
