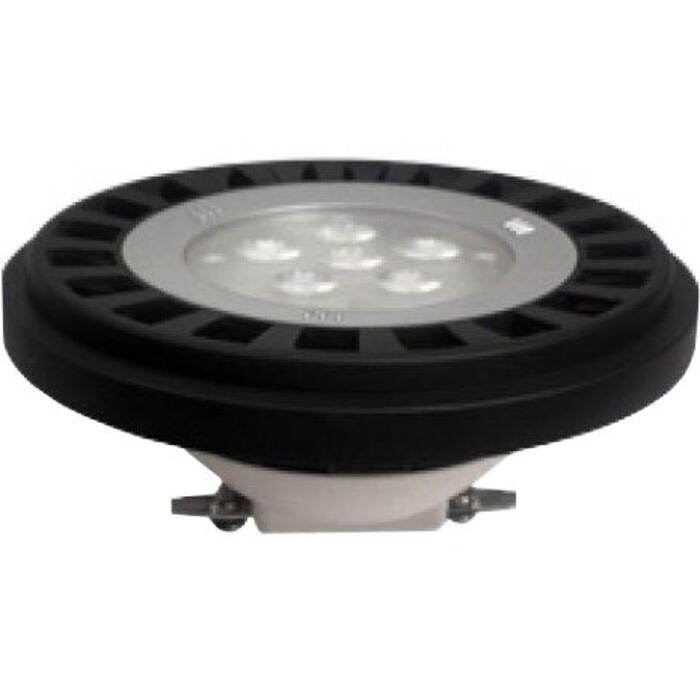

Dr. LED Replacement LED Sealed Beam - 90 deg. Connectors - 9000074

The Dr. LED Replacement LED Sealed Beam light replaces 50-watt halogen sealed beam (AR111 & PAR38) for most spreader and foredeck lights. It works with both 12 and 24V DC power and is waterproof.

Features:

• AR111 / PAR38 Sealed Beam LED Replacement
• Replaces 50-watt halogen sealed beam (AR111 & PAR38) for most spreader and foredeck lights
• High purity aluminum housing provides ample heat sinking as well as ingress protection to ensure long operational life
• Highly shock and vibration resistant
• Ultra-rugged with no filament to burn out or break
• IP67 waterproof

Specifications:

• Electrical: Input voltage:
  • 12/24V DC
• Draw: 0.8 Amp @ 12V DC
• Non-polarized connection
• Waterproof: IP67
• Brightness: 700 Lumen
  • 2000 lux @ 1 M
• Beam: 38 degree
• LED Color Temperature: 6,000 Degree Kelvin
• Light Color: Cool white
• Hour life span rated: 25,000 US made CREE LEDs
• Operating temperature: -40 to +145 Degree F (-40 to +63 Degree C)
• Under-voltage and voltage-spike protected
• Electrically protected against RFI/EMC interference
• ETL US & Canada listed and FCC compliance certified
  • Safe to use close to VHF antenna
• MIL-STD-810G vibration & shock proof,
• ASTM B117 salt spray (fog) compliant
• Mechanical:
  • High Purity Aluminum Housing
  • Marine Grade Finish
  • Acrylic Lens Dimensions: 110mm (4.3") diameter, 45mm (1.8") depth Weight: 204g (7.2oz)
